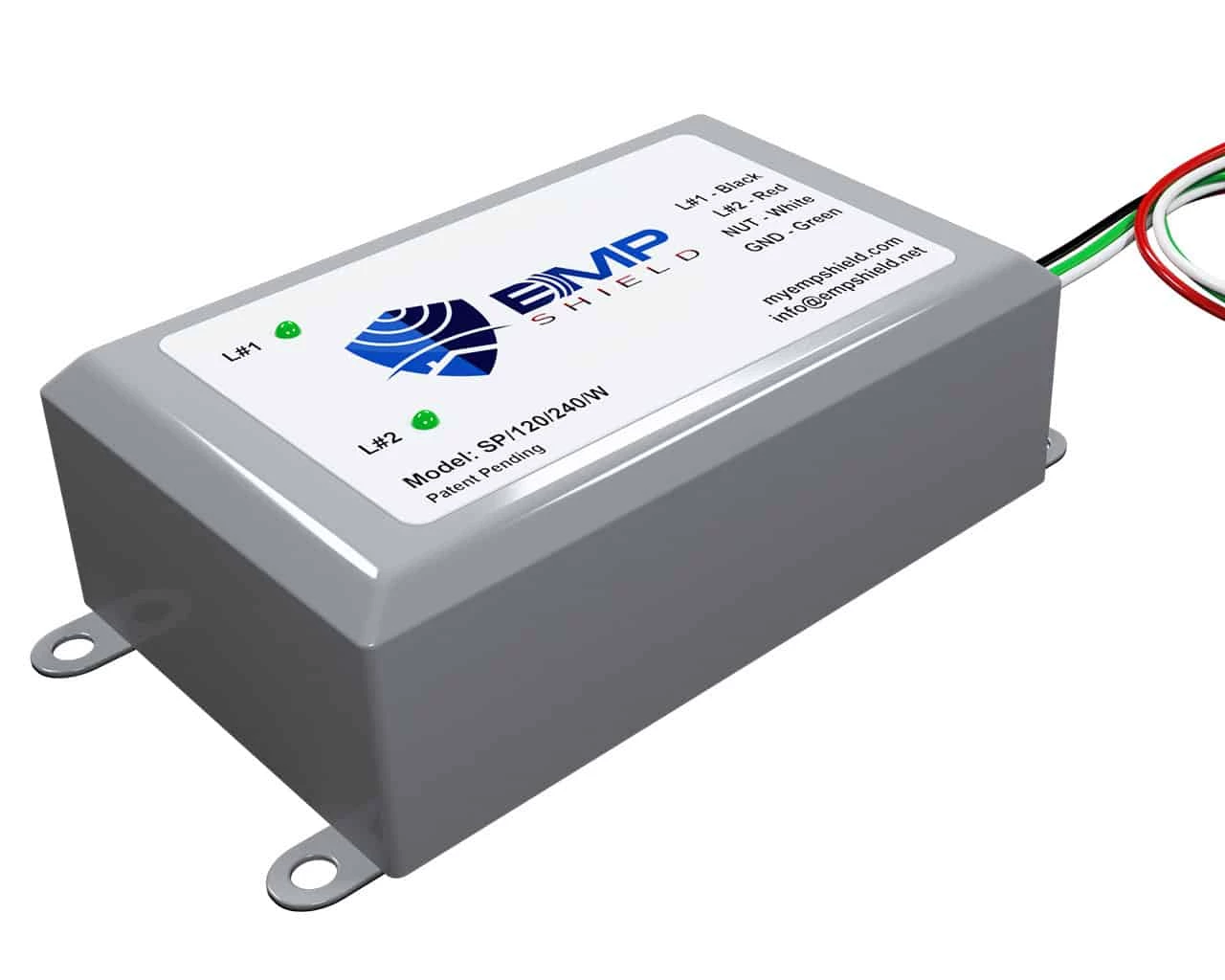

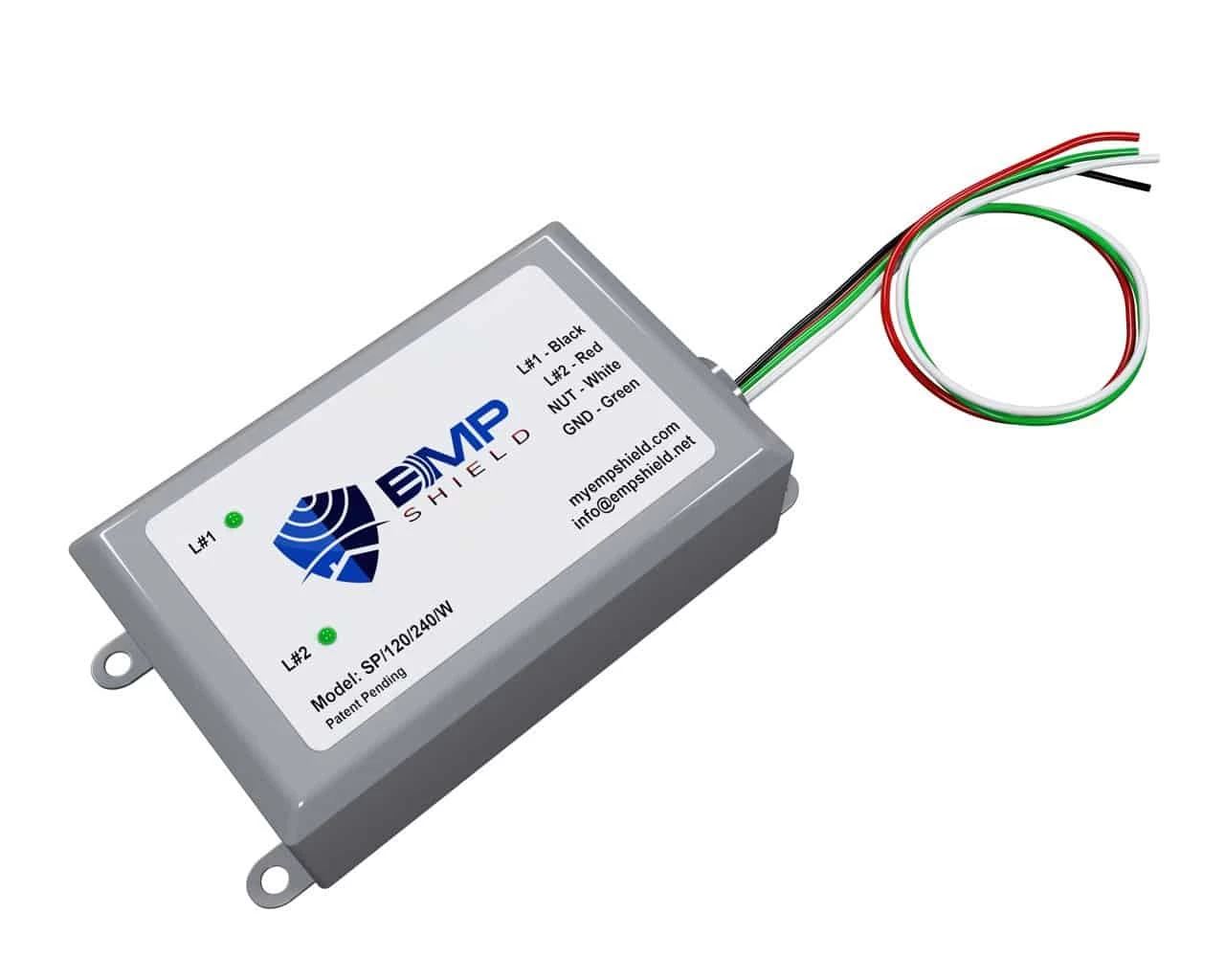

EMP Shield Generator Portable Or Home EMP & Lightning Protection

EMP Shield is the World’s first EMP protection technology for Whole Home Generators. Its one of the world’s fastest military-tested surge protectors proven to defend against all phases of electromagnetic pulse, solar flares, and lightning strikes. The Whole Home Generator EMP Shield will ensure operation of your generator’s electrical system even after suffering an electromagnetic pulse or a lightning strike, helping you and your family in protecting your home and maintaining your electronic needs.

• Incredibly Powerful – capable of withstanding up to 228,000 Amps per phase (E1, E2, & E3)
• SightSpeed Technology – patented technology pulls excess electricity from your electrical system in 500-Trillionths of a second
• IP 66 Weather Proof – can be used in extreme hot & cold climate conditions
• Easy Install – Designed to install easily (within 10 minutes) for any application – installation guide included

EMP Shield will protect electronics and equipment relying on your Whole Home Generator. This is accomplished by shunting (shorting) the over voltage coming in from the grid and the voltage surges that are collected within your home. Since the shunting is completed incredibly fast, the over voltage is drained away from the equipment before the voltage can rise high enough to damage any equipment.

Features

Tech Specs

EMP Shield Product Specifications	SP/120/240/W
Phase:	Single Phase
Nominal System Voltage:	120/240V AC
Maximum Surge Per Phase:	114kA (80 microseconds)
Maximum Surge Per Line	114kA (80 microseconds)
Short Circuit Current Rating:	10kA
Nominal Discharge Current:	114kA (80 microseconds)
Number of Poles:	1
Enclosure Material	Plastic
NEMA Rating:	NEMA 4
Application:	Outdoor Applications; Indoor Applications
Color:	Gray
Features:	LED Status Indication; AC Power Protection
For Maximum Wire Size:	12 AWG
For Use With:	Individual Equipment Power Box; Circuit Breaker Enclosures; and Load Centers
Frequency:	60 Hz
IP Rating Met:	IP66
Maximum Continuing Operating Voltage:	150V/300V AC
Maximum Surge Current Per Mode:	114kA (80 microseconds)
Modes of Protection:	L-L; L-N; L-G; N-G
Mounting Style:	Individual Equipment Power Box; Circuit Breaker Enclosures; and Load Centers
Number of Wires:	4
Overall Height:	2-1/2″
Overall Length:	6-3/16″
Overall Width:	2-3/4″
Specification Met:	UL 1449; CE; IP66; MIL-STD-188-125-1; MIL-STD-461G; MIL-STD-464C; and RS105
Voltage Protection Rating:	L-G 470V; L-L 940V; L-N 470V; N-G 470
Response Time:	< 1 nanoseconds
