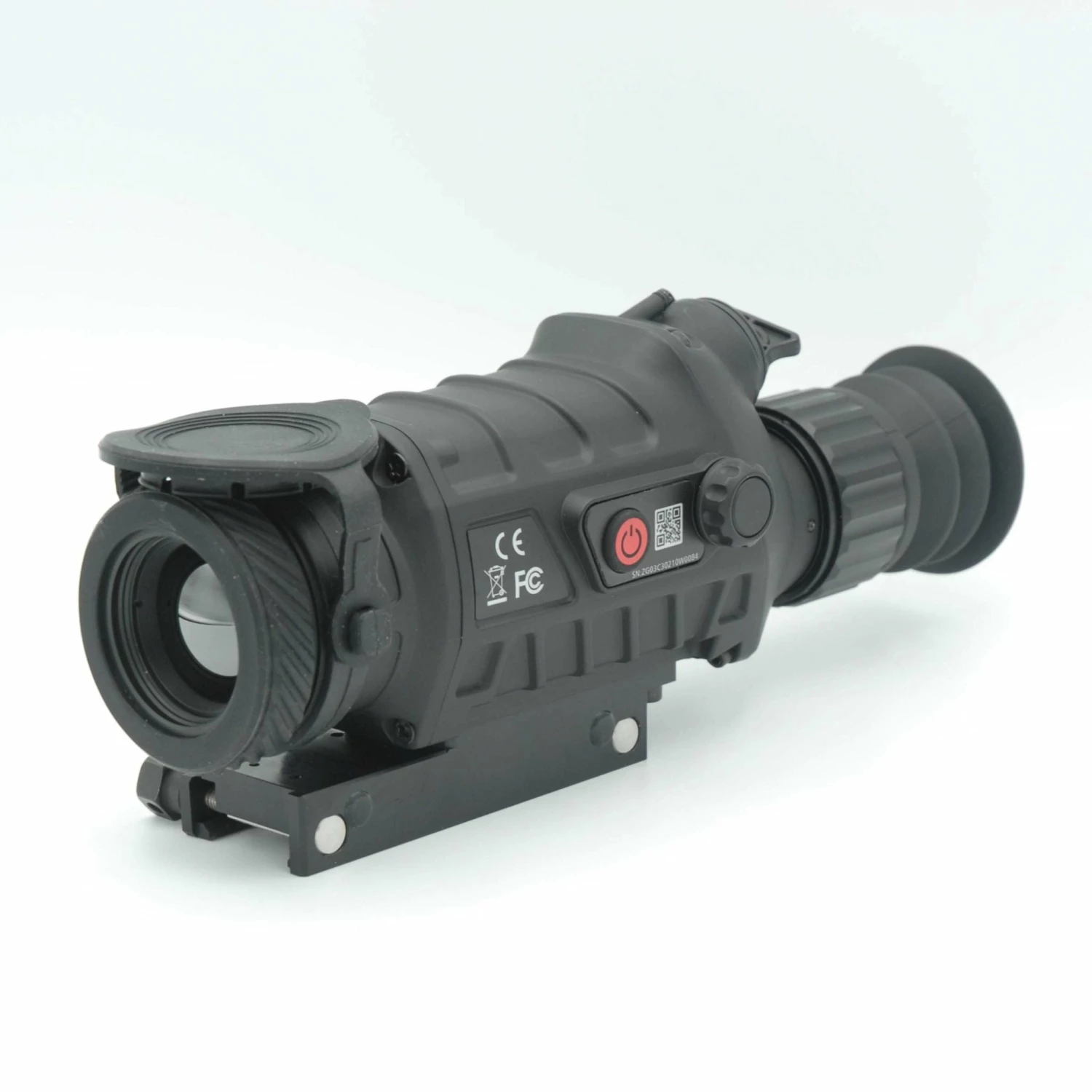

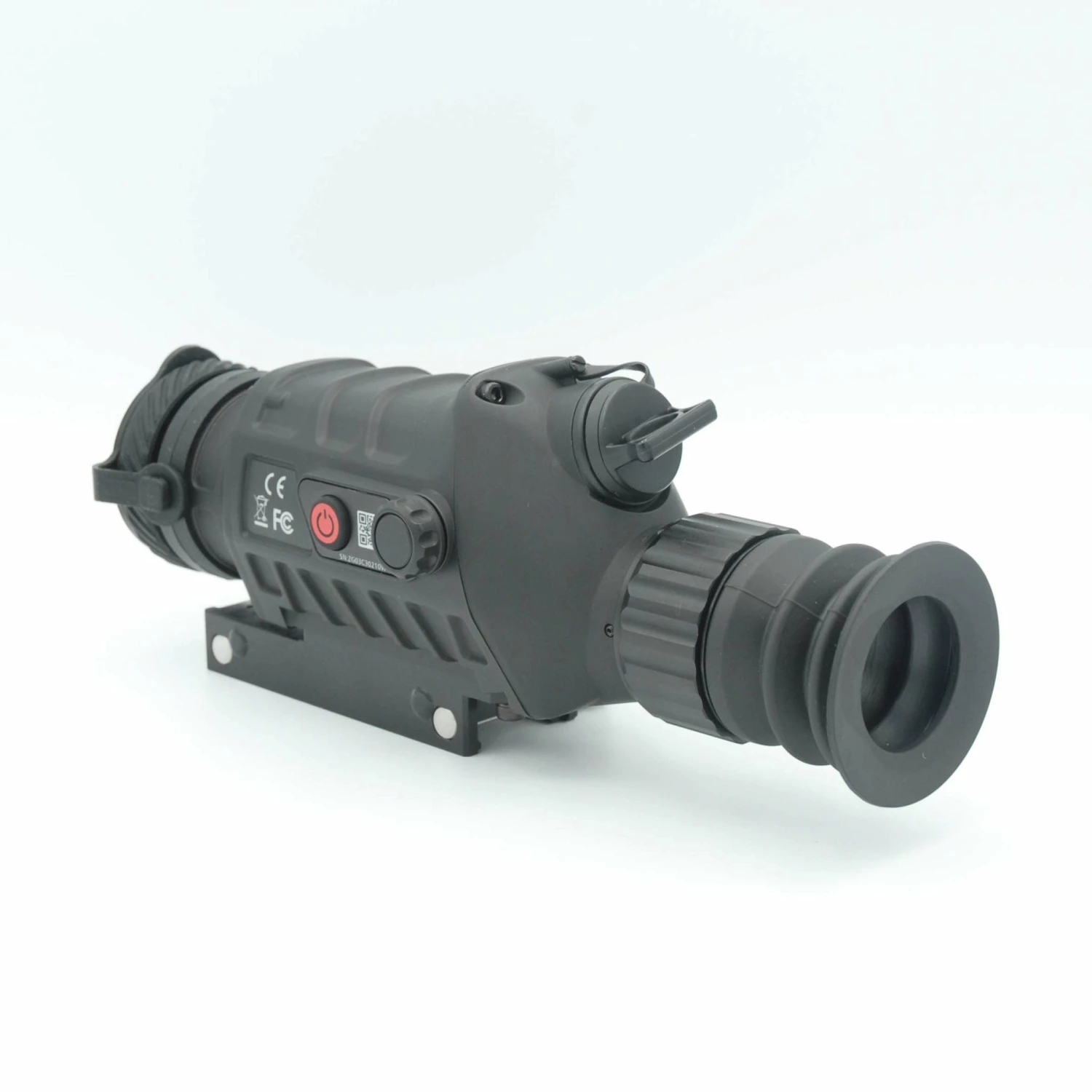

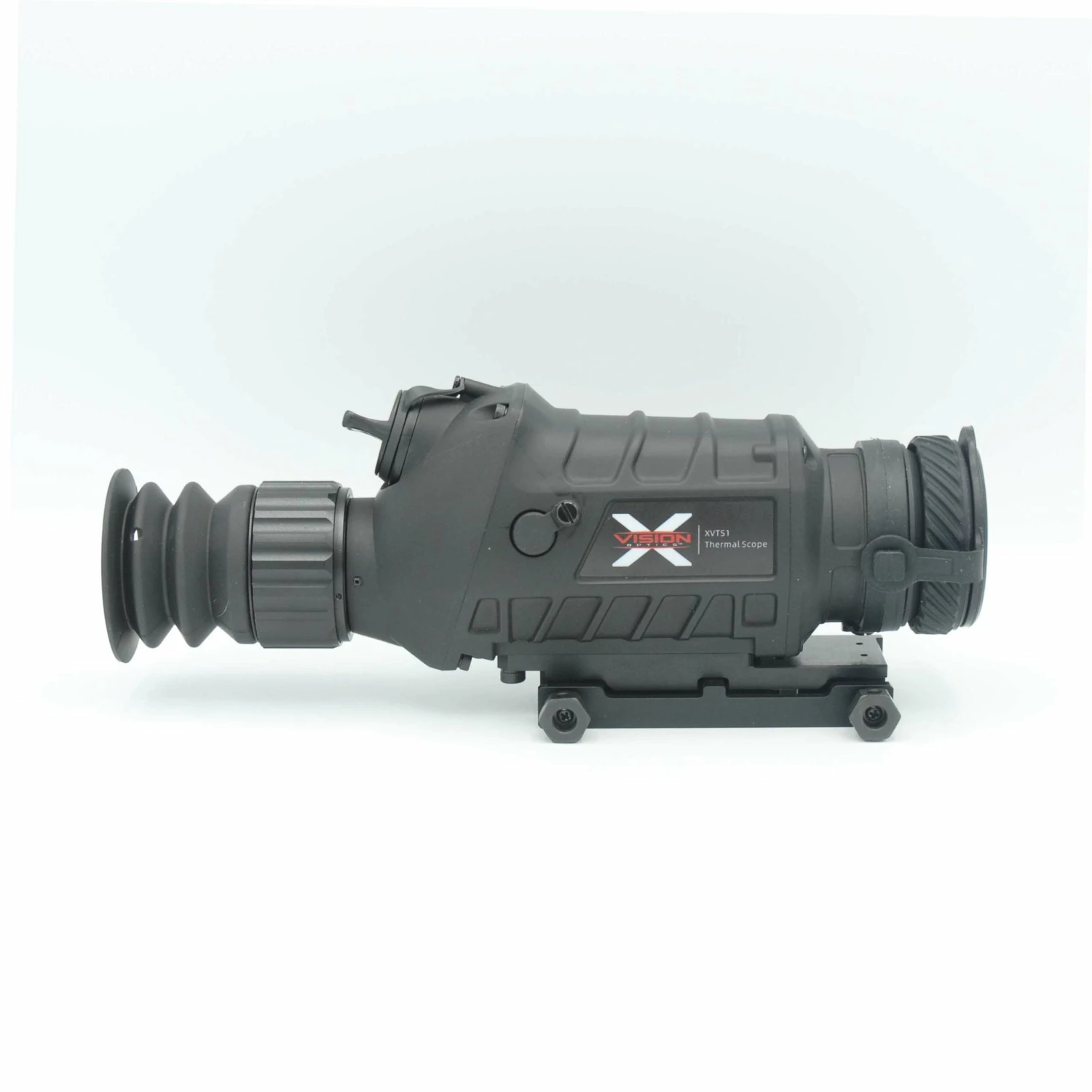

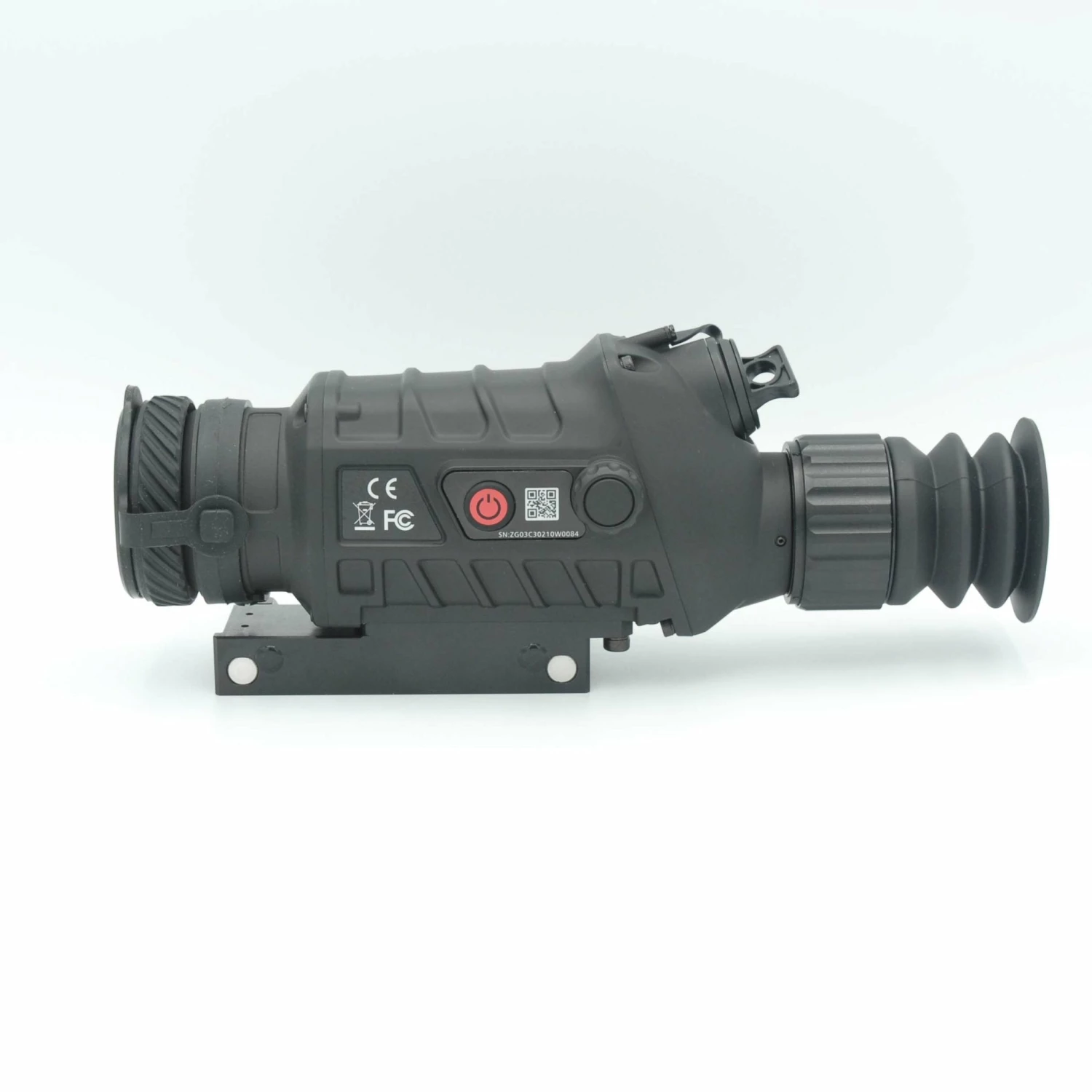

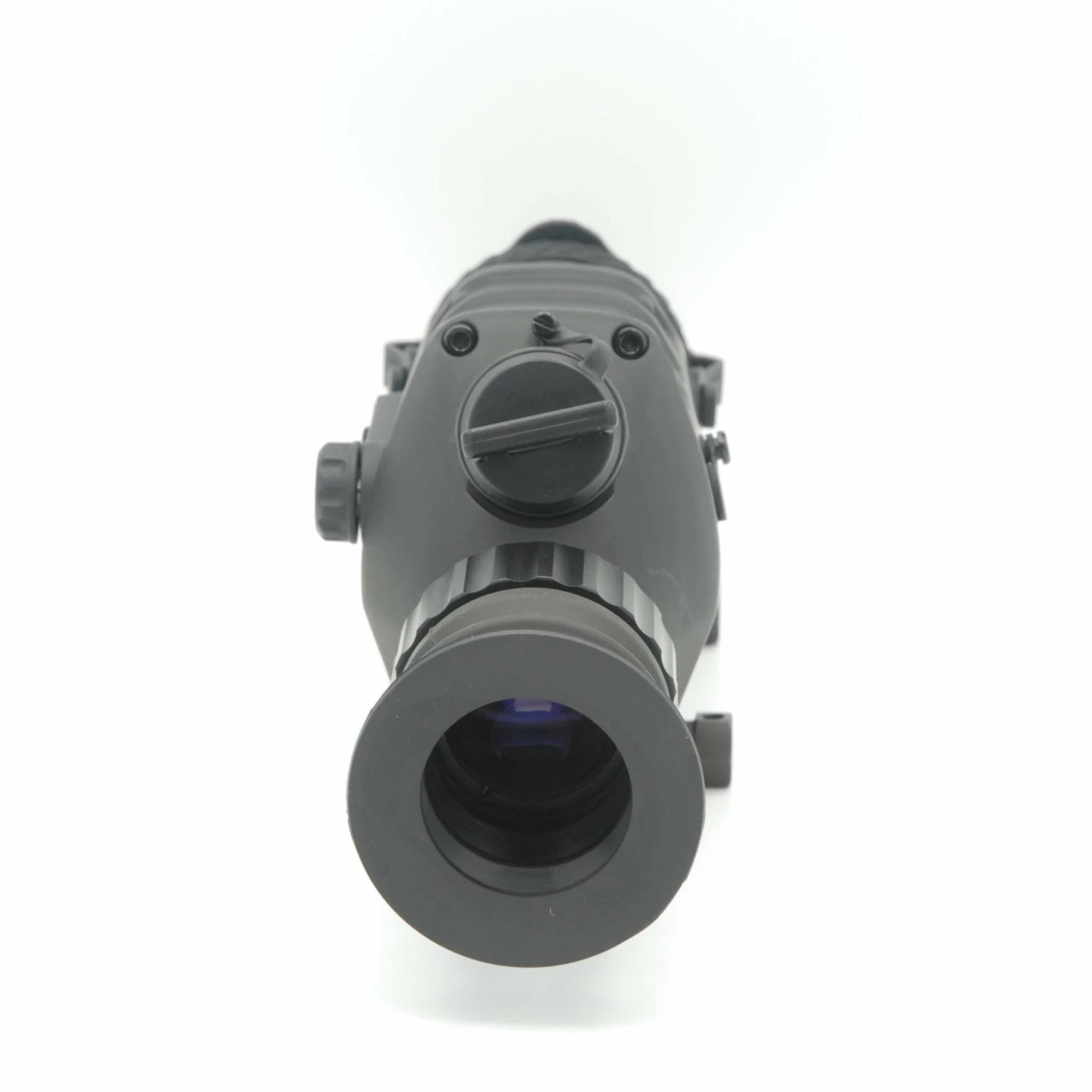

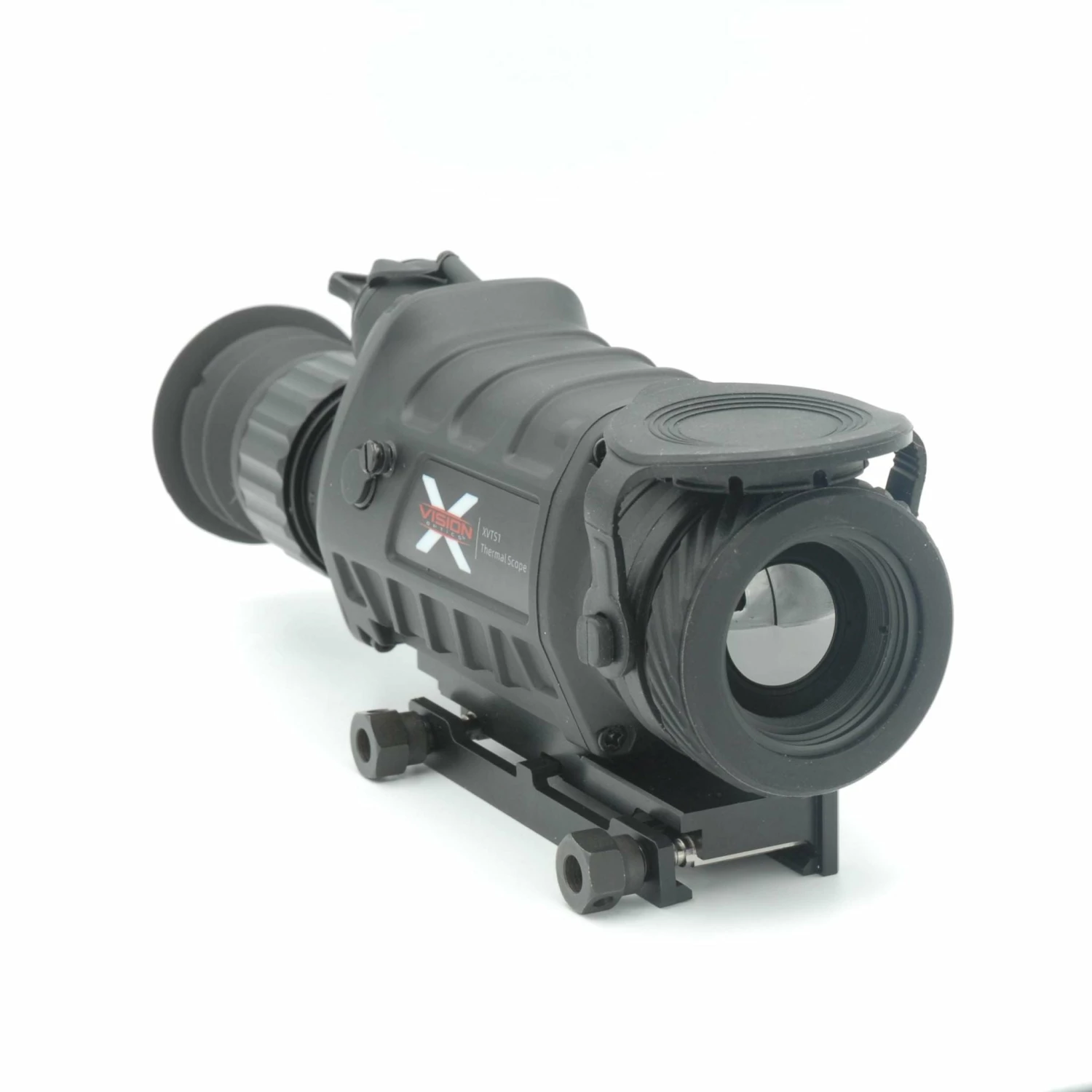

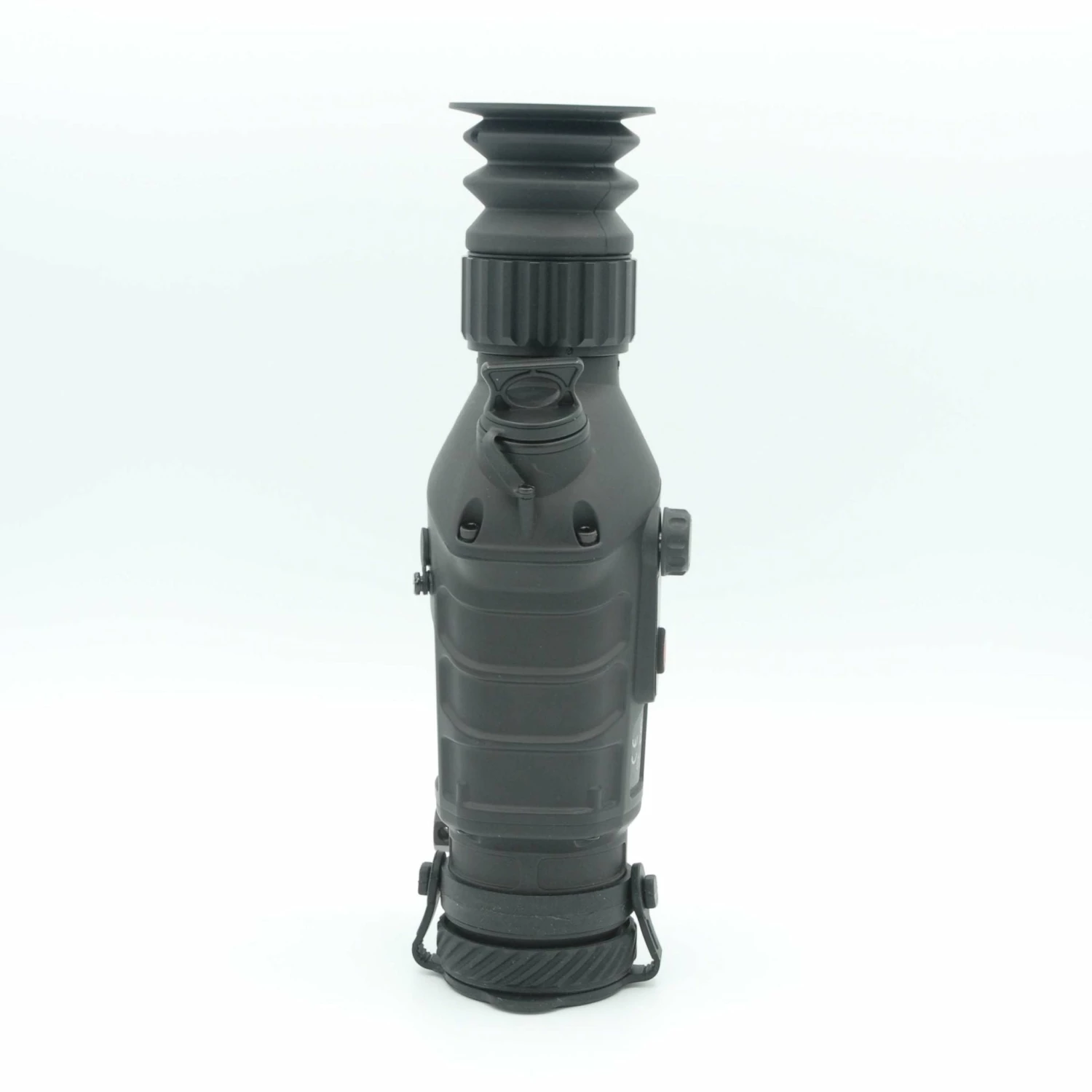

X-Vision XVT Thermal Scope – TS1

X-Vision Optics’ all-new Thermal Scope (TS1) brings the “heat” with its 400 x 300 uncooled infrared detector that can detect big game well past 2,000 yards. With ten reticle options and six different palettes to choose from, even the pickiest of hunters can fine-tune this device to their preferences. With an IP67 weatherproof rating and its durable chassis, the TS1 was built to withstand any and all conditions. The thermal scope provides both day and night use for hunting, scouting, and surveilling.

High-Performance Detection Range

The thermal scope has a 2,600-yard detection range and a 1,100-yard recognition range. At a high frame rate of 50 Hz, the device captures sharp thermal images and smoothly tracks rapid motion in the distance. The objective lens is 35 mm in diameter and has a field of view of 10.7^o x 8.0^o. This thermal scope has a 2.3 to 9.2x magnification. The TS1 is dust and water-resistant to an International Protection Rating of IP67.

Compact and lightweight

This device is twice as compact as the leading competition weighing only 1.7 lb. The unit’s seven colour palettes include White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, and Blue Hot. Each palette option will detect heat and display in the selected colour. The device is capable of manual or automatic shutter calibration, ensuring a clear image.

Hot Spot Tracking

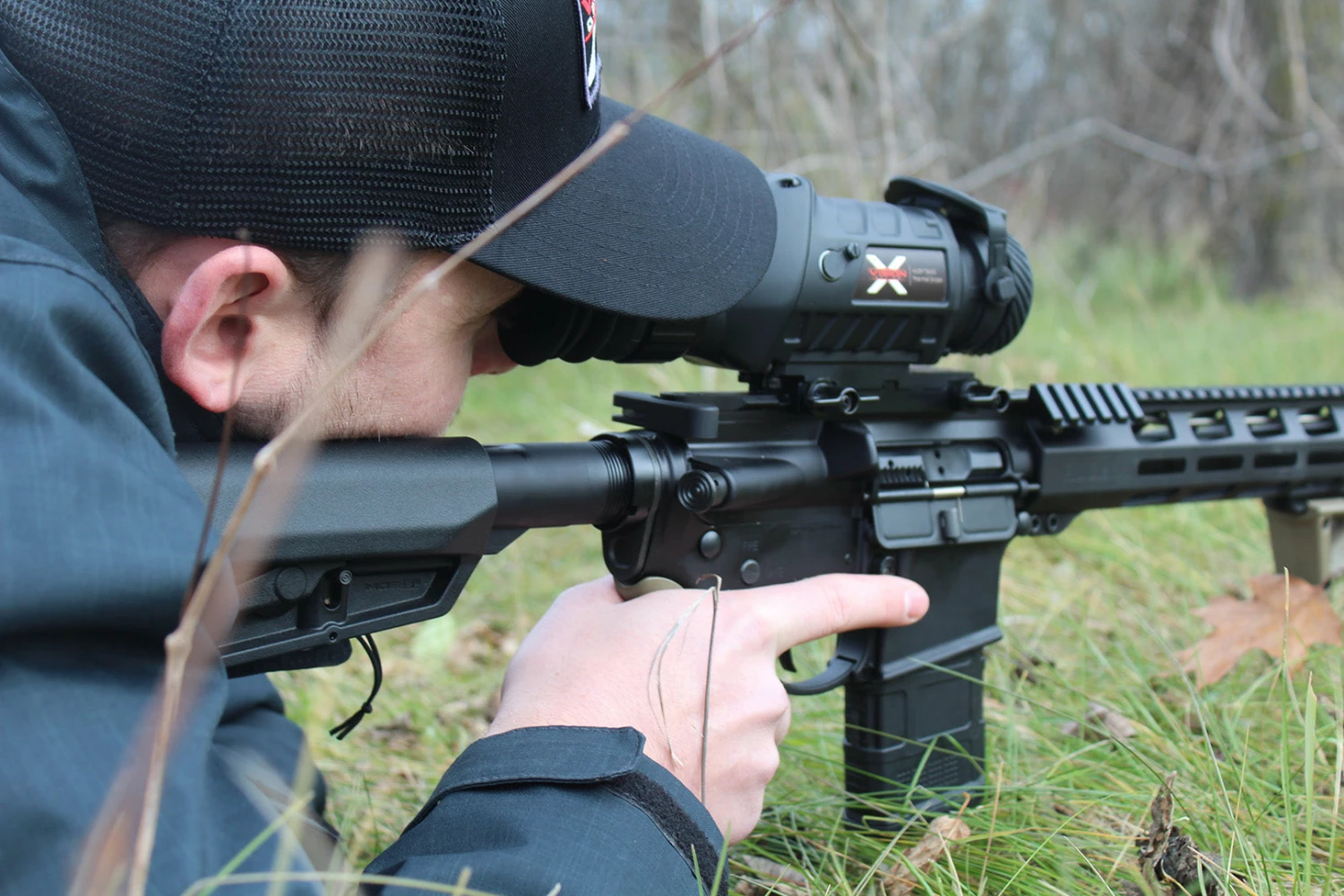

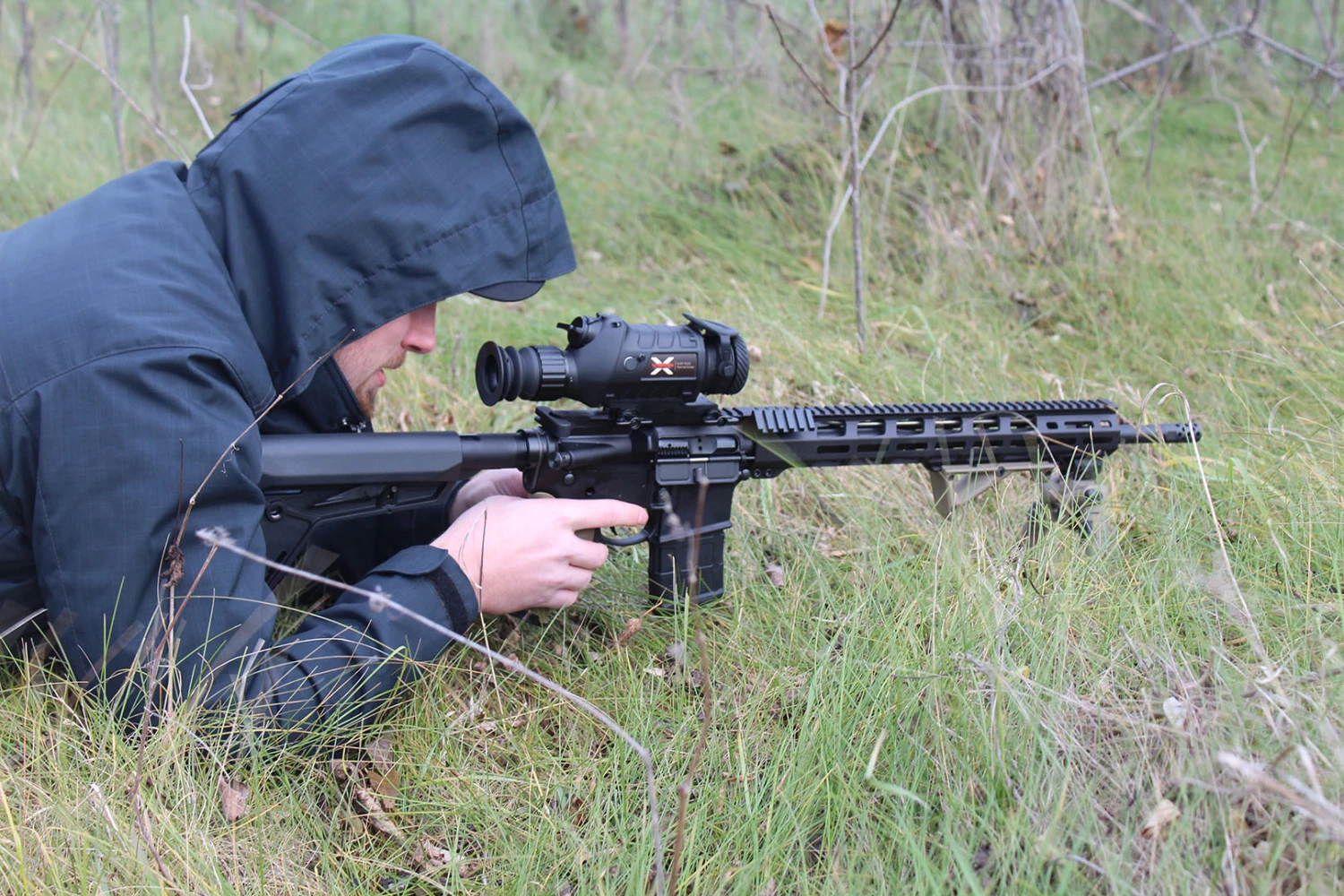

This thermal scope is a multifunctional device that can be used for both day and night target observation and in any terrain. The unit has optional hotspot tracking which uses a small crosshair to pinpoint and follow the hottest object in its field of view making it easy to detect game at long ranges and in dense terrains.

Durable and Reliable

The device has ten reticle options along with two reticle colour options. The unit can save six sets of zeroing data, allowing for quick and easy mounting on multiple firearms. This unit is capable of handling over 53 ft/lb. of recoil allowing compatibility with a large variety of firearms. The unit also includes a stadia-metric rangefinder and comes with an interchangeable 18650 lithium-ion battery. The TS1 has external viewing capabilities when connected to a display device. Additionally, the thermal scope has picture-in-picture capabilities.

Specifications

• Magnification: 3-9.2x
• Detector:400 x 300 uncooled infrared detector
• Pixel Size:17µm
• Frame Rate:50Hz

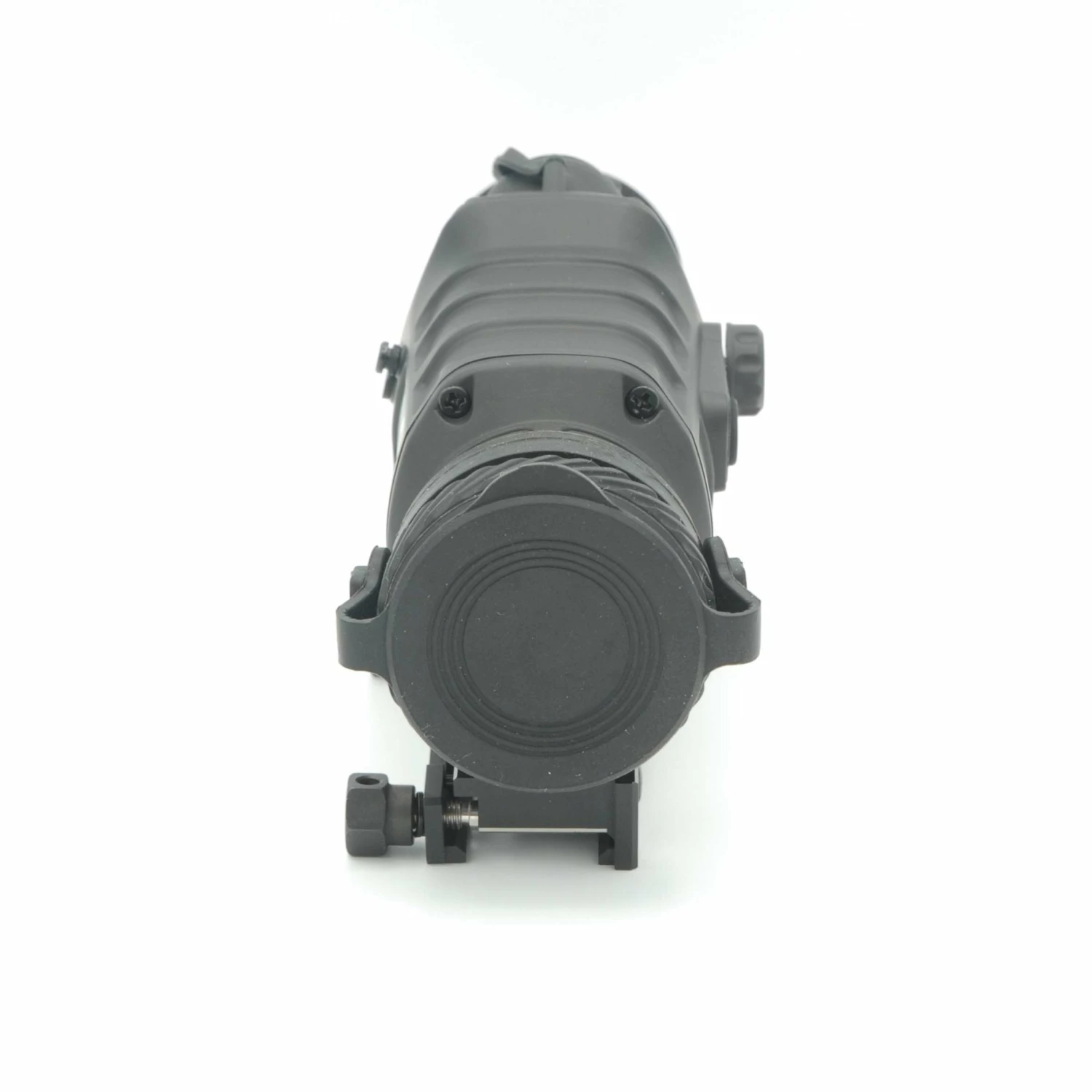

• Objective Lens:35mm
• Field of View:7^o x 8.0^o
• Detection Range: Person- (1100yds) / Vehicle- (2600 yds)
• Recognition Range: Person- (550yds) / Vehicle- (1100yds)
• NETD:≤50mk
• Reticle: 10 reticle options and two reticle colours (black and white)
• Display Screen: 1024 x 768 Color OLED
• Display Palette: white hot, red hot 1, red hot 2, red hot 3, green hot, blue hot
• Power Supply: Single rechargeable 18650 Lithium-Ion Battery
• Battery Life:  >5hours (@77^o)
• Dimensions: 5” x 3” x 9”
• IP Rating: IP67
• Ranging Capabilities: Yes

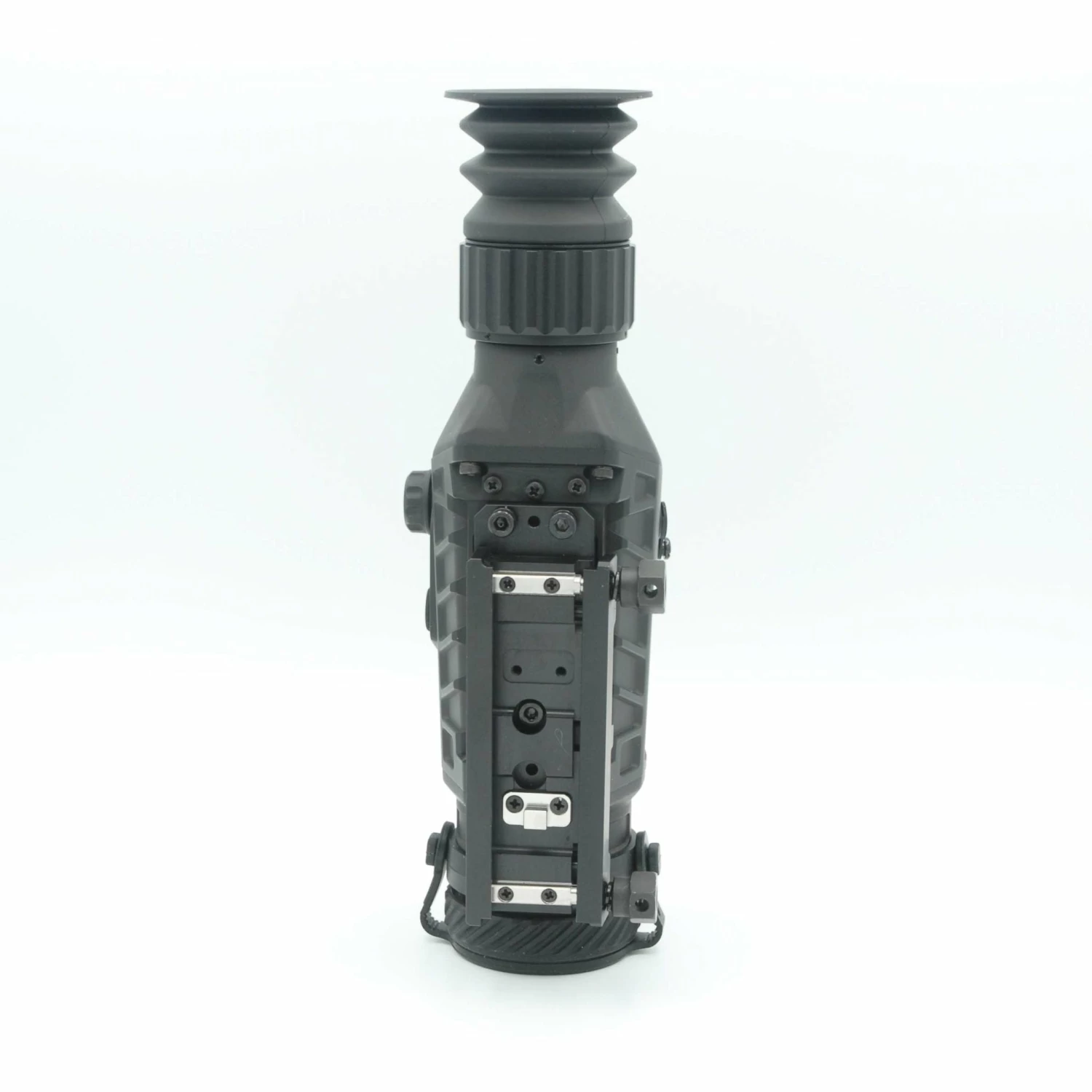

• Mount: Picatinny Mount
• Weight: 1.4 lb
• Hot Track: Yes
